“UTFILTER-HFB” SERIES
Filter elements of "UTfilter-HFB" series are high flow filters for purification of process liquids, recycled water, chemically active substances, liquid hydrocarbons.
They are designed for purification from solid mechanical impurities in double filtration mode: contaminants capture on the surface with subsequent deep filtration in the volume of filtration material.
| Nominal filtration fineness for mechanical impurities | 1, 5, 10, 25, 40 µm |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 0,01 MPa |
| Maximum pressure difference | 0,34 MPa |
| Operating pressure | up to 10 MPa |
| Heat resistance | up to +100 °C |
| Operating temperature | up to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

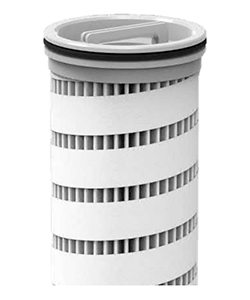

HFB
frameless
calssic version

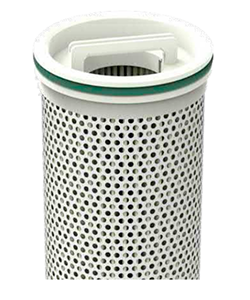

HFB-P
with spring
calssic version

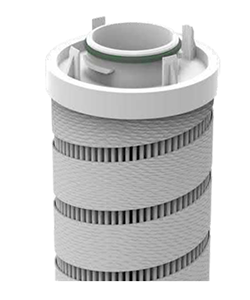

HFB-C
frameless
rotary lock
| Mark | Filtration fineness, µm | Length, mm | Initial pressure difference, MPa | Maximum pressure difference, MPa | Version |
|---|---|---|---|---|---|
| UTF.HFB.01.529 | 01 | 529 | 0,01 | 0,34 | HFB |
| UTF.HFB.05.529 | 05 | 529 | 0,01 | 0,34 | HFB |
| UTF.HFB.10.529 | 10 | 529 | 0,01 | 0,34 | HFB |
| UTF.HFB.01.1037 | 01 | 1037 | 0,01 | 0,34 | HFB |
| UTF.HFB.05.1037 | 05 | 1037 | 0,01 | 0,34 | HFB |
| UTF.HFB.10.1037 | 10 | 1037 | 0,01 | 0,34 | HFB |
| UTF.HFB.10.1545 | 10 | 1545 | 0,01 | 0,34 | HFB |
| UTF.HFB.25.1545 | 25 | 1545 | 0,01 | 0,34 | HFB |
| UTF.HFB.40.1545 | 40 | 1545 | 0,01 | 0,34 | HFB |
| UTF.HFB.01.1037.P | 01 | 1037 | 0,01 | 0,34 | HFB-P |
| UTF.HFB.05.1037.P | 05 | 1037 | 0,01 | 0,34 | HFB-P |
| UTF.HFB.10.1037.P | 10 | 1037 | 0,01 | 0,34 | HFB-P |
| UTF.HFB.01.1016.C | 01 | 1016 | 0,01 | 0,34 | HFB-C |
| UTF.HFB.05.1016.C | 05 | 1016 | 0,01 | 0,34 | HFB-C |
| UTF.HFB.10.1016.C | 10 | 1016 | 0,01 | 0,34 | HFB-C |
