“FROM” SERIES
Filter elements of "FROM" series are designed for cleaning from solid mechanical impurities of industrial oils in mechanisms of industrial equipment.
They are used in stationary single element and multielement filters and low-pressure oil stations.
| Nominal filtration fineness for mechanical impurities | 10, 25, 40 µm |
| Moisture resistance | 80% |
| Pressure difference on the clean element | 0,02 - 0,05 MPa |
| Recommended final difference | 0,25 MPa |
| Maximum difference in pressure | up to 2 MPa |
| Heat resistance | up to +100 °C |
| Operating temperature | up to +80 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

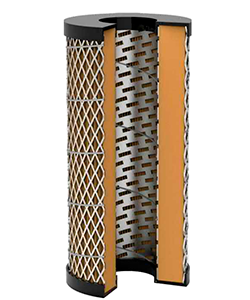

K1
through-hole
optional mechanical seal

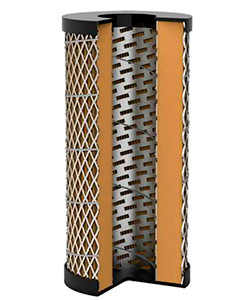

K2
blank
optional mechanical seal
| Mark | Filtration fineness, µm | Outer diameter, mm | Length, mm | Recommended final difference, MPa | Version |
|---|---|---|---|---|---|
| UTF.F10.60.200.K1 | 10 | 95 | 200 | 0,25 | K1 |
| UTF.F25.60.200.K1 | 10 | 95 | 200 | 0,25 | K1 |
| UTF.F40.60.200.K1 | 25 | 95 | 200 | 0,25 | K1 |
| UTF.F10.60.200.K2 | 40 | 95 | 200 | 0,25 | K2 |
| UTF.F25.60.200.K2 | 10 | 95 | 200 | 0,25 | K2 |
| UTF.F40.60.200.K2 | 25 | 95 | 200 | 0,25 | K2 |
| UTF.F10.95.200.K1 | 10 | 95 | 200 | 0,25 | K1 |
| UTF.F25.95.200.K1 | 25 | 95 | 200 | 0,25 | K1 |
| UTF.F40.95.200.K1 | 40 | 95 | 200 | 0,25 | K1 |
| UTF.F10.95.200.K2 | 10 | 95 | 200 | 0,25 | K2 |
| UTF.F25.95.200.K2 | 25 | 95 | 200 | 0,25 | K2 |
| UTF.F40.95.200.K2 | 40 | 95 | 200 | 0,25 | K2 |
| UTF.F10.150.360.K1 | 10 | 150 | 360 | 0,25 | K1 |
| UTF.F25.150.360.K1 | 25 | 150 | 360 | 0,25 | K1 |
| UTF.F40.150.360.K1 | 40 | 150 | 360 | 0,25 | K1 |
