“G-OIL” SERIES
Filter elements of "G-Oil" series are designed for cleaning from solid mechanical impurities of industrial oils in mechanisms of industrial equipment.
They are used in stationary pressure and drain single element filters, duplex filters and high-pressure oil stations
| Nominal filtration fineness for mechanical impurities | 3, 5, 10, 25, 40, 60 µm |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 0,2 MPa |
| Recommended final difference | up to 0,8 MPa |
| Maximum difference in pressure | 2 MPa |
| Operating pressure | up to 32 MPa |
| Operating temperature | up to +120 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

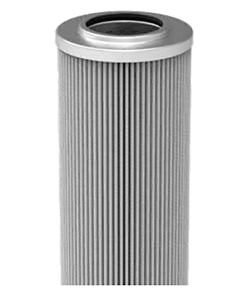

P1
blind with spigot
seal on the spigot

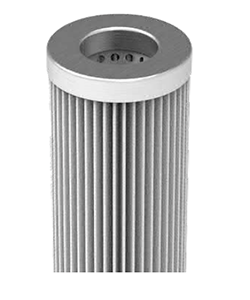

P2
with flat cover
no seal

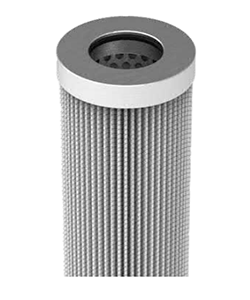

P3
with flat cover
seal on the spigot
P3
rotary lock
seal on the spigot
| Mark | Filtration fineness, µm | Outer diameter, mm | Length, mm | Recommended final difference, MPa | Version |
|---|---|---|---|---|---|
| UTF.GO.10.69.116.GA | 10 | 69 | 116 | 0,8 | GA |
| UTF.GO.10.69.175.GA | 10 | 69 | 175 | 0,8 | GA |
| UTF.GO.10.80.250.GA | 10 | 80 | 250 | 0,8 | GA |
| UTF.GO.10.80.400.GA | 10 | 80 | 400 | 0,8 | GA |
| UTF.GO.10.83.145.GB | 10 | 83 | 145 | 0,8 | GB |
| UTF.GO.10.83.255.GB | 10 | 83 | 255 | 0,8 | GB |
| UTF.GO.10.45.113.GE | 10 | 45 | 113 | 0,8 | GE |
| UTF.GO.10.45.209.GE | 10 | 45 | 209 | 0,8 | GE |
| UTF.GO.10.80.207.GE | 10 | 80 | 207 | 0,8 | GE |
| UTF.GO.10.80.329.GE | 10 | 80 | 329 | 0,8 | GE |
| UTF.GO.10.114.334.GY | 10 | 114 | 334 | 0,8 | GY |
| UTF.GO.10.114.414.GY | 10 | 114 | 414 | 0,8 | GY |
| UTF.GO.10.144.483.GY | 10 | 144 | 483 | 0,8 | GY |
| UTF.GO.10.144.921.GY | 10 | 144 | 921 | 0,8 | GY |
