“STREAM” SERIES
Filter elements of "Stream" series are designed for cleaning from solid mechanical and liquid-spray impurities of natural and associated petroleum combustible gases supplied from fields, underground gas storages, main gas pipelines.
They are used in stationary filter-separators and patron filters for fine purification of main and fuel gases before supplying to compressor equipment and gas turbines.
| Nominal filtration fineness for mechanical impurities | 1, 3, 5, 10 µm |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 5 kPa |
| Recommended final difference | up to 0,08 MPa |
| Maximum difference in pressure | up to 0,2 MPa |
| Operating pressure | up to 10 MPa |
| Operating temperature | -60 to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

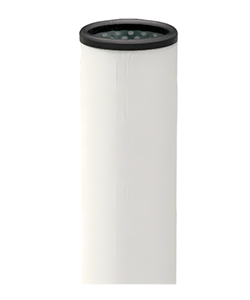

P1
through-hole version
of outer filtration

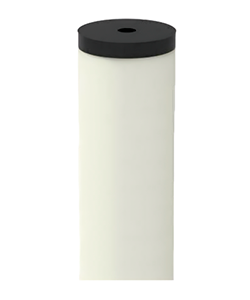

P4
with a stud hole
of outer filtration
| Mark | Outer diameter, mm | Length, mm | Initial difference, kPa | Filtration fineness, µm | Version |
|---|---|---|---|---|---|
| UTF.P.03.110.615.P1 | 110 | 615 | 5 | 03 | P1 |
| UTF.P.05.110.615.P1 | 110 | 615 | 5 | 05 | P1 |
| UTF.P.03.140.914.P4 | 140 | 914 | 5 | 03 | P4 |
| UTF.P.10.110.615.P1 | 110 | 615 | 5 | 10 | P1 |
| UTF.P.05.140.914.P4 | 140 | 914 | 5 | 05 | P4 |
| UTF.P.03.110.915.P1 | 110 | 915 | 5 | 03 | P1 |
| UTF.P.10.140.914.P4 | 140 | 914 | 5 | 10 | P4 |
| UTF.P.05.110.915.P1 | 110 | 915 | 5 | 05 | P1 |
| UTF.P.03.152.600.P4 | 152 | 600 | 5 | 03 | P4 |
| UTF.P.10.110.915.P1 | 110 | 915 | 5 | 10 | P1 |
| UTF.P.05.152.600.P4 | 152 | 600 | 5 | 05 | P4 |
| UTF.P.03.114.915.P1 | 114 | 915 | 5 | 03 | P1 |
| UTF.P.10.152.600.P4 | 152 | 600 | 5 | 10 | P4 |
| UTF.P.05.114.910.P1 | 114 | 910 | 5 | 05 | P1 |
| UTF.P.03.152.1000.P4 | 152 | 1000 | 5 | 03 | P4 |
| UTF.P.10.152.1000.P4 | 152 | 1000 | 5 | 10 | P4 |
| UTF.P.05.152.1000.P4 | 152 | 1000 | 5 | 05 | P4 |
| UTF.P.10.114.910.P1 | 114 | 910 | 5 | 10 | P1 |
