“STREAM-M” SERIES
Filter elements of "Stream-M" series are designed for cleaning from solid mechanical and liquid-spray impurities of natural and associated petroleum combustible gases supplied from fields, underground gas storages, main gas pipelines.
They are used in filter-separators for fine purification of main and fuel gases before supplying to compressor equipment and gas turbines.
| Nominal filtration fineness for mechanical impurities | 1, 5, 10, 20 µm |
| Minimum liquid-spray impurity size | 0,3 µm |
| Pressure difference on the clean element | not more than 5 kPa |
| Recommended final difference | up to 0,08 MPa |
| Maximum difference in pressure | up to 0,02 MPa |
| Operating pressure | up to 10 MPa |
| Operating temperature | 0 to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

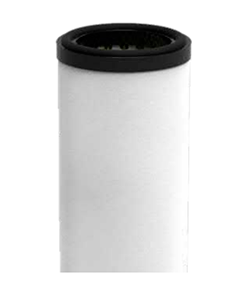

K1
through-hole
of outer filtration

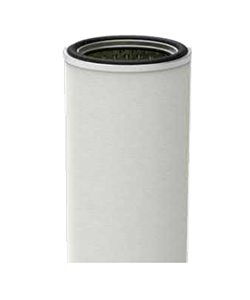

K5
through-hole
of outer filtration

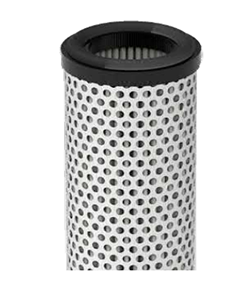

KV1
through-hole
of inner filtration

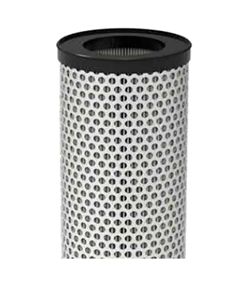

KV7
blank
of inner filtration
| Mark | Filtration fineness, µm | Outer diameter, mm | Length, mm | Initial difference, kPa | Version |
|---|---|---|---|---|---|
| UTF.PM.10.127.550.K1 | 10 | 127 | 550 | 5 | K1 |
| UTF.PM.20.127.550.K1 | 20 | 127 | 550 | 5 | K1 |
| UTF.PM.05.125.550.K5 | 05 | 125 | 550 | 5 | K5 |
| UTF.PM.10.125.550.K5 | 10 | 125 | 550 | 5 | K5 |
| UTF.PM.20.125.550.K5 | 20 | 125 | 550 | 5 | K5 |
| UTF.PM.05.125.905.K5 | 05 | 125 | 905 | 5 | K5 |
| UTF.PM.10.125.905.K5 | 10 | 125 | 905 | 5 | K5 |
| UTF.PM.20.125.905.K5 | 20 | 125 | 905 | 5 | K5 |
| UTF.PM.05.125.1105.K5 | 05 | 125 | 1105 | 5 | K5 |
| UTF.PM.10.125.1105.K5 | 10 | 125 | 1105 | 5 | K5 |
| UTF.PM.20.125.1105.K5 | 20 | 125 | 1105 | 5 | K5 |
| UTF.PM.10.125.1500.K5 | 10 | 125 | 1500 | 5 | K5 |
| UTF.PM.20.125.1500.K5 | 20 | 125 | 1500 | 5 | K5 |
| UTF.PM.05.85.500.KV1 | 05 | 85 | 500 | 5 | KV1 |
| UTF.PM.10.85.500.KV1 | 10 | 85 | 500 | 5 | KV1 |
| UTF.PM.01.152.1000.KV7 | 01 | 152 | 1000 | 5 | KV7 |
| UTF.PM.05.152.1000.KV7 | 05 | 152 | 1000 | 5 | KV7 |
