“STANDARD-BT” SERIES
Filter elements of "Standard-BT" series are designed for cleaning from solid mechanical impurities of natural and associated petroleum combustible gases (APС) heated to high temperatures.
They are Designed to capture zeolite dust in regeneration and cooling filters of adsorption gas drying plant. Can be used in high-temperature natural gas treatment filters before feeding to flares and burners.
| Nominal filtration fineness for mechanical impurities | 10 µm |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 5 kPa |
| Recommended final difference | up to 0,08 MPa |
| Maximum difference in pressure | up to 0,2 MPa |
| Operating pressure | up to 10 MPa |
| Operating temperature | 0 to +500 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

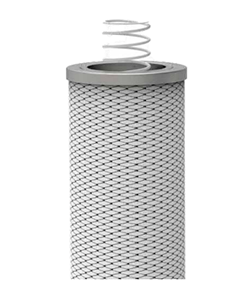

P1
with spring
vertical position

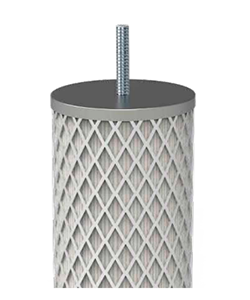

P4
with a stud
vertical position
| Mark | Outer diameter, mm | Length, mm | Initial difference, kPa | Filtration fineness, µm | Version |
|---|---|---|---|---|---|
| UTF.SVT.105.500.P2 | 105 | 500 | 10 | 10 | P2 |
| UTF.SVT.105.900.P2 | 105 | 900 | 10 | 10 | P2 |
| UTF.SVT.105.1800.P2 | 105 | 1800 | 10 | 10 | P2 |
| UTF.SVT.142.1100.K7 | 142 | 1100 | 10 | 10 | K7 |
