“AIR” SERIES
Filter elements of "Air" series are cartridge type air filters with purification classes from M5 to F9, have a corrugated Filtration surface and are designed for air purification from solid mechanical impurities and dust of static and impulse systems
They are used in stationary filter-separators and patron filters for fine purification of main and fuel gases before supplying to compressor equipment and gas turbines.
| Class of purification | M5 - F9 |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 140 Pa |
| Recommended final difference in static systems | 450 Pa |
| Efficiency | up to 3400 m3/h |
| Operating temperature of the heat-resistant version | 0 to +100 °C |
| Operating temperature | -60 to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

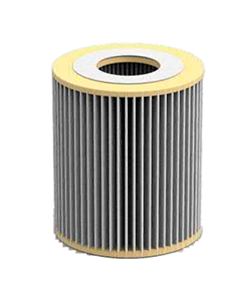

K0
without-covers
static filtration

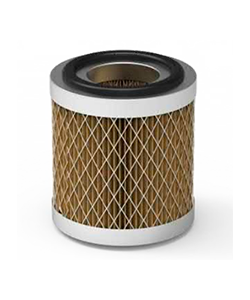

K1
through-hole
static filtration

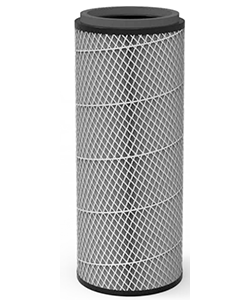

K3
with a stud hole
static/impulse filtration

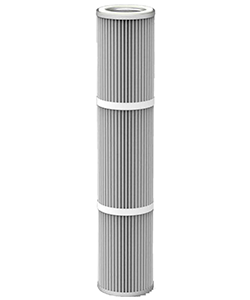

K6
threaded
impulse filtration
| Mark | Class of filtration | Outer diameter, mm | Length, mm | Recommended final difference | Version |
|---|---|---|---|---|---|
| UTF.V.F7.100.78.K0 | F7 | 100 | 78 | 450 | K0 |
| UTF.V.F7.118.135.K0 | F7 | 118 | 135 | 450 | K0 |
| UTF.V.F7.118.135.K1 | F7 | 118 | 135 | 450 | K1 |
| UTF.V.F7.282.408.K3 | F7 | 282 | 408 | 450 | K3 |
| UTF.V.F7.325.660.K3 | F7 | 325 | 660 | 450 | K3 |
| UTF.V.F7.120.600.K6 | F7 | 120 | 600 | 450 | K6 |
| UTF.V.F7.120.900.K6 | F7 | 120 | 900 | 450 | K6 |
