“AIR-GT” SERIES
Filter elements of "Air-GT" series are cartridge type air filters with purification classes from F9 to E12. They are designed for air purification in static and pulsed air preparation systems of HEU of gas turbine units (GTU) and gas compressor units (GCU).

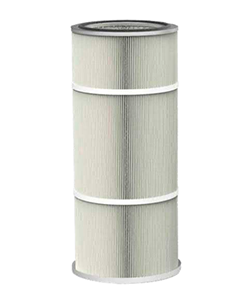

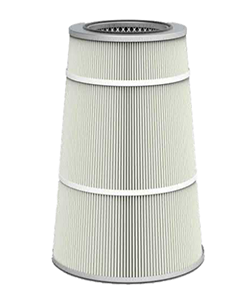

Classic solution for an impulse purification system is a conical and cylindrical cartridge in a pair, installed horizontally in the working area.
| Class of purification | F9 - E12 |
| Recommended pre-purification class | G4 |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 180 Pa |
| Recommended final difference | 600 Pa |
| Efficiency | up to 4250 m3/h |
| Operating temperature | -60 to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |
K1
through cone
impulse filtration
K3
with a stud cone
static/impulse filtration

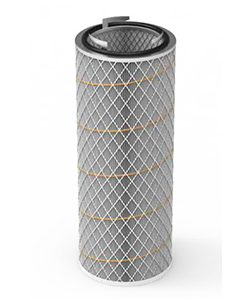

K15
through cone
rotary lock
| Mark | Class of filtration | Outer diameter, mm | Length, mm | Recommended final difference | Version |
|---|---|---|---|---|---|
| UTF.VGT.F9.445.660.K1 | F9 | 445 | 660 | 600 | K1 |
| UTF.VGT.F9.325.660.K3 | F9 | 325 | 660 | 600 | K3 |
| UTF.VGT.E11.445.660.K1 | E11 | 445 | 660 | 600 | K1 |
| UTF.VGT.E11.325.660.K3 | E11 | 325 | 660 | 600 | K3 |
| UTF.VGT.F9.325.864.К15 | F9 | 325 | 864 | 600 | K15 |
| UTF.VGT.E11.325.864.К15 | E11 | 325 | 864 | 600 | K15 |
