“UTFILTER-KG” SERIES
Filter elements of "UTfilter-KG" series are coalescers and perform a double function: they aggregate liquid-spray impurities when passing through the developed combined filter surface and provide drainage of accumulated moisture in the volume of the drainageaccumulation layer.
They are used in stationary filter-separators and coalescence units for highly efficient gas cleaning from moisture before supplying to compressor equipment and gas turbines.
| Nominal filtration fineness for mechanical impurities | 10 µm |
| Minimum liquid-spray impurity size | 0,3 µm |
| Pressure difference on the clean element | not more than 5 kPa |
| Recommended final difference | up to 0,08 MPa |
| Maximum difference in pressure | up to 0,02 MPa |
| Operating pressure | up to 10 MPa |
| Operating temperature | 0 to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

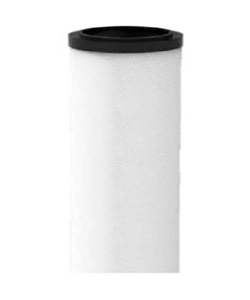

P1
through-hole version
of inner filtration

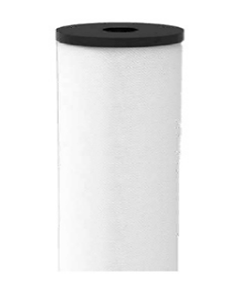

P2
with a stud hole
of inner filtration
P3
with external seal
of inner filtration
| Mark | Filtration fineness, µm | Outer diameter, mm | Length, mm | Initial difference, kPa | Version |
|---|---|---|---|---|---|
| UTF.KG.70.245.KV1 | 0,3 | 70 | 245 | 5 | KV1 |
| UTF.KG.150.1104.KV1 | 0,3 | 150 | 1104 | 5 | KV1 |
| UTF.KG.152.1100.KV4 | 0,3 | 152 | 1100 | 5 | KV4 |
| UTF.KG.144.890.KV6 | 0,3 | 144 | 890 | 5 | KV6 |
| UTF.KG.152.1000.KV | 0,3 | 152 | 1000 | 5 | KV7 |
