“MAGISTRAL” SERIES
Filter elements of "Magistral" series are designed to equip stationary gas and oil filters of high pressure (up to 50 MPa) used at compressor units during compression of main gas.
Two types are manufactured for fuel gas preparation units and dry gas seal systems: F - filters and K - coalescers, for capturing liquid-spray moisture in the stream supplied for purification.
| Nominal filtration fineness for mechanical impurities | 1, 3, 5, 10 µm |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 5 kPa |
| Maximum difference in pressure | up to 0,2 MPa |
| Operating pressure | up to 50 MPa |
| Operating temperature of the heat-resistant version | 0 to +150 °C |
| Operating temperature | 0 to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

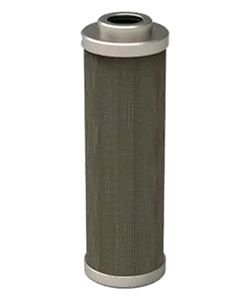

001
version

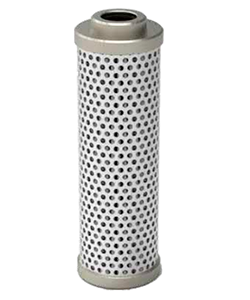

002
version

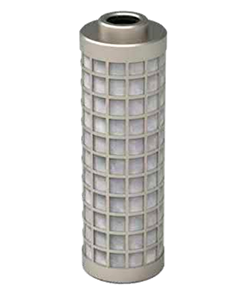

003
version
037
version
| Mark | Purpose | Filtration fineness, µm | Basic material | Heat resistance | Version |
|---|---|---|---|---|---|
| UTF.M.F.01.C.T.001 | F | 01 | C | T | 001 |
| UTF.M.F.03.C.T.001 | F | 03 | C | T | 001 |
| UTF.M.F.05.C.T.001 | F | 05 | C | T | 001 |
| UTF.M.F.10.C.T.001 | F | 10 | C | T | 001 |
| UTF.M.F.01.C.T.002 | F | 01 | C | T | 002 |
| UTF.M.F.03.C.T.002 | F | 03 | C | T | 002 |
| UTF.M.F.05.C.T.002 | F | 05 | C | T | 002 |
| UTF.M.F.10.C.T.002 | F | 10 | M | T | 002 |
| UTF.M.F.03.M.C.003 | F | 03 | M | C | 003 |
| UTF.M.K.01.M.C.037 | K | 01 | M | C | 037 |
| UTF.M.K.03.M.C.037 | K | 03 | M | C | 037 |
