“STANDATR” SERIES
Filter elements of "Stream-M" series are designed for cleaning from solid mechanical and liquid-spray impurities of natural and associated petroleum combustible gases supplied from fields, underground gas storages, main gas pipelines.
They are used in filter-separators for fine purification of main and fuel gases before supplying to compressor equipment and gas turbines.
| Nominal filtration fineness for mechanical impurities | 10 µm |
| Moisture resistance | 100% |
| Pressure difference on the clean element | not more than 5 kPa |
| Recommended final difference | up to 0,08 MPa |
| Maximum difference in pressure | up to 0,02 MPa |
| Operating pressure | up to 10 MPa |
| Operating temperature | -60 to +100 °C |
| Transportation and storage | 3(ZhZ) acc. to GOST 15150 |

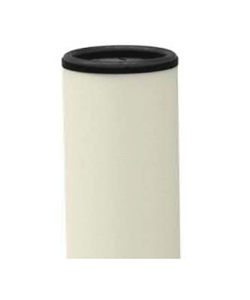

P1
through-hole
vertical position

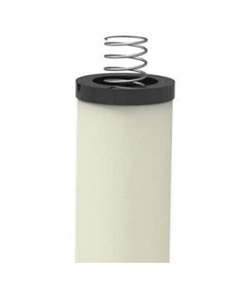

P2
with spring
vertical position

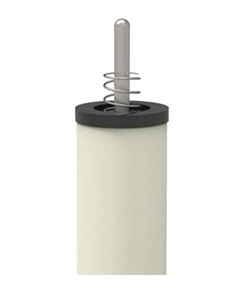

P3
with finger
horizontal position
| Mark | Filtration fineness, µm | Outer diameter, mm | Length, mm | Initial difference, kPa | Version |
|---|---|---|---|---|---|
| UTF.S.127.1500.P1 | 10 | 127 | 1500 | 5 | P1 |
| UTF.S.180.1500.P1 | 10 | 180 | 1500 | 5 | P1 |
| UTF.S.105.900.P2 | 10 | 105 | 900 | 5 | P2 |
| UTF.S.105.1800.P2 | 10 | 105 | 1800 | 5 | P2 |
| UTF.S.122.900.P2 | 10 | 122 | 900 | 5 | P2 |
| UTF.S.122.1800.P2 | 10 | 122 | 1800 | 5 | P2 |
| UTF.S.105.1800.P3 | 10 | 105 | 1800 | 5 | P3 |
| UTF.S.115.1800.P3 | 10 | 115 | 1800 | 5 | P3 |
| UTF.S.122.1800.P3 | 10 | 122 | 1800 | 5 | P3 |
